The Minelab X-TERRA PRO is a single-frequency metal detector with manual frequency selection and full submersion capability, designed for intermediate hunters who want control over their operating frequency without multi-frequency pricing. Built around PRO-SWITCH technology, the X-TERRA PRO lets you choose the frequency that matches your target type and soil conditions per hunt, then runs that frequency cleanly through six search mode profiles. Rated waterproof to 16 feet, the machine covers parks, plowed fields, wet saltwater beaches, and shallow water recovery with the same control box. For detectorists stepping up from fixed-frequency entry machines, the X-TERRA PRO delivers room to grow without relearning a control panel every time the site changes.

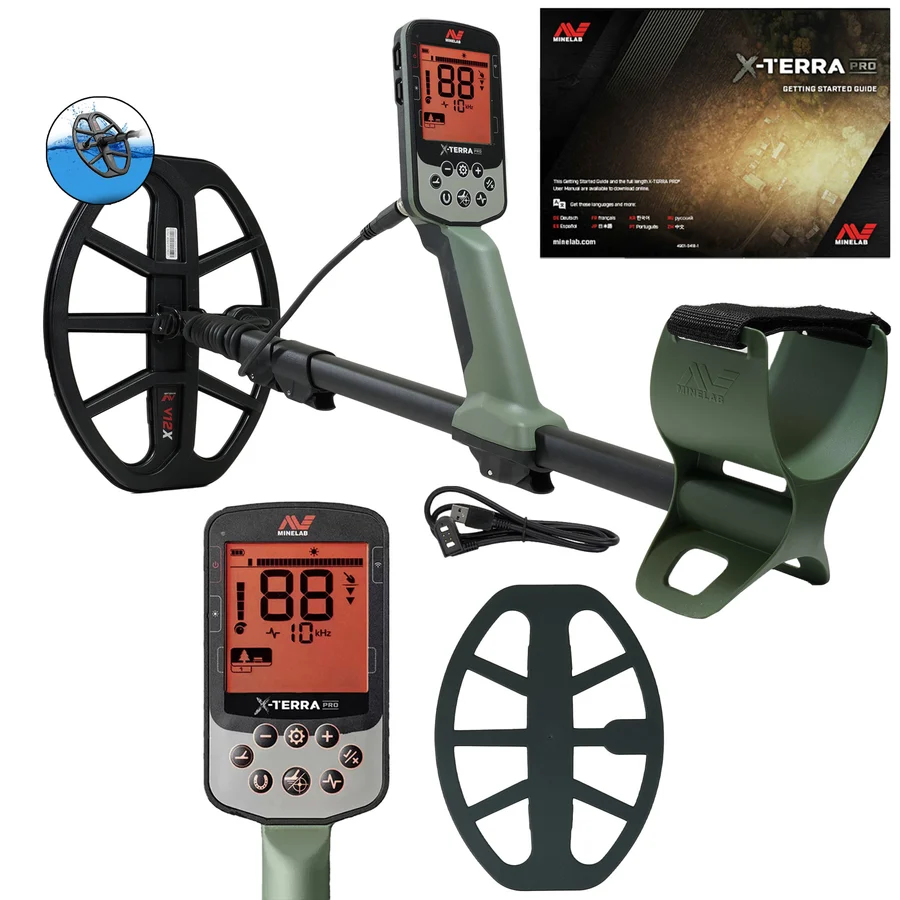

What’s Included with the Minelab X-TERRA PRO
- Minelab X-TERRA PRO control box and three-piece collapsible shaft assembly
- V12X 12-inch x 9-inch elliptical Double-D search coil with skidplate
- Internal lithium-ion rechargeable battery
- Magnetic USB charging cable
- Getting started guide
- Three-year limited manufacturer’s warranty covering control box and coil
PRO-SWITCH Frequency Selection and What It Changes in the Field
PRO-SWITCH is a manual frequency selection system, not simultaneous multi-frequency technology. The difference matters practically: you choose one frequency per hunt based on your target and terrain, and the machine runs that single frequency cleanly without the processing trade-offs that come with transmitting several frequencies at once. In Park and Field modes, you select from three options. Beach mode fixes the frequency at a setting Minelab has tuned specifically for saltwater ground conditions. Lower frequencies penetrate soil more deeply and respond more strongly to high-conductivity targets like large silver and iron relics. Higher frequencies increase sensitivity to small gold, fine jewelry, and thin coins. On a fixed-frequency machine that trade is set at the factory. On the Minelab X-TERRA PRO platform, you make it per hunt.
Using the Minelab X-TERRA PRO in Heavily Hunted Parks
Urban parks mix bottle caps, pull-tabs, iron, and foil within centimeters of good coins. At the higher frequency setting, the X-TERRA PRO separates a dime from adjacent iron at a few inches, and the expanded 30-segment discrimination gives you enough notch range to keep mid-conductors open without accepting aluminum scrap. The 99-segment non-ferrous target ID scale delivers finer resolution than most affordable detectors in this segment, so you can notch out specific junk categories while still accepting coins that fall in the same conductivity band. In a heavily hunted park where pull-tabs and foil outnumber good targets ten to one, that notch precision is the difference between a productive hunt and a frustrating dig session.
Plowed Fields and Old Homestead Sites
Farm fields and homestead sites have variable mineralization and deep targets. The lower frequency setting produces a stronger signal on high-surface-area objects at depth, and Field mode profiles give a clean discrimination baseline for unimproved land. Ground Balance offers Auto, Tracking, and Manual modes. Auto sets the balance at startup, Tracking adjusts continuously as you sweep, and Manual lets you lock a balance setting before you start swinging in highly variable ground. Noise Cancel runs automatically at startup, reading EMI and adjusting the machine’s own channel without any manual input.
Wet Saltwater Sand and Surf Zones
Wet saltwater sand creates ground noise that forces sensitivity cuts on single-frequency machines, masking shallow targets. The X-TERRA PRO’s Beach mode addresses high-mineral, high-salt ground with a frequency calibrated for those conditions, and the 16-foot waterproof rating covers the surf zone, wet sand, and shallow water recovery with the same machine. Wade the surf zone, recover a target in standing water, or swing through a shallow stream without worrying about moisture intrusion. Hunters cross-shopping waterproof detectors in the 10-16 foot submersion range will find the X-TERRA PRO’s IP68 rating competitive with machines at twice the price.

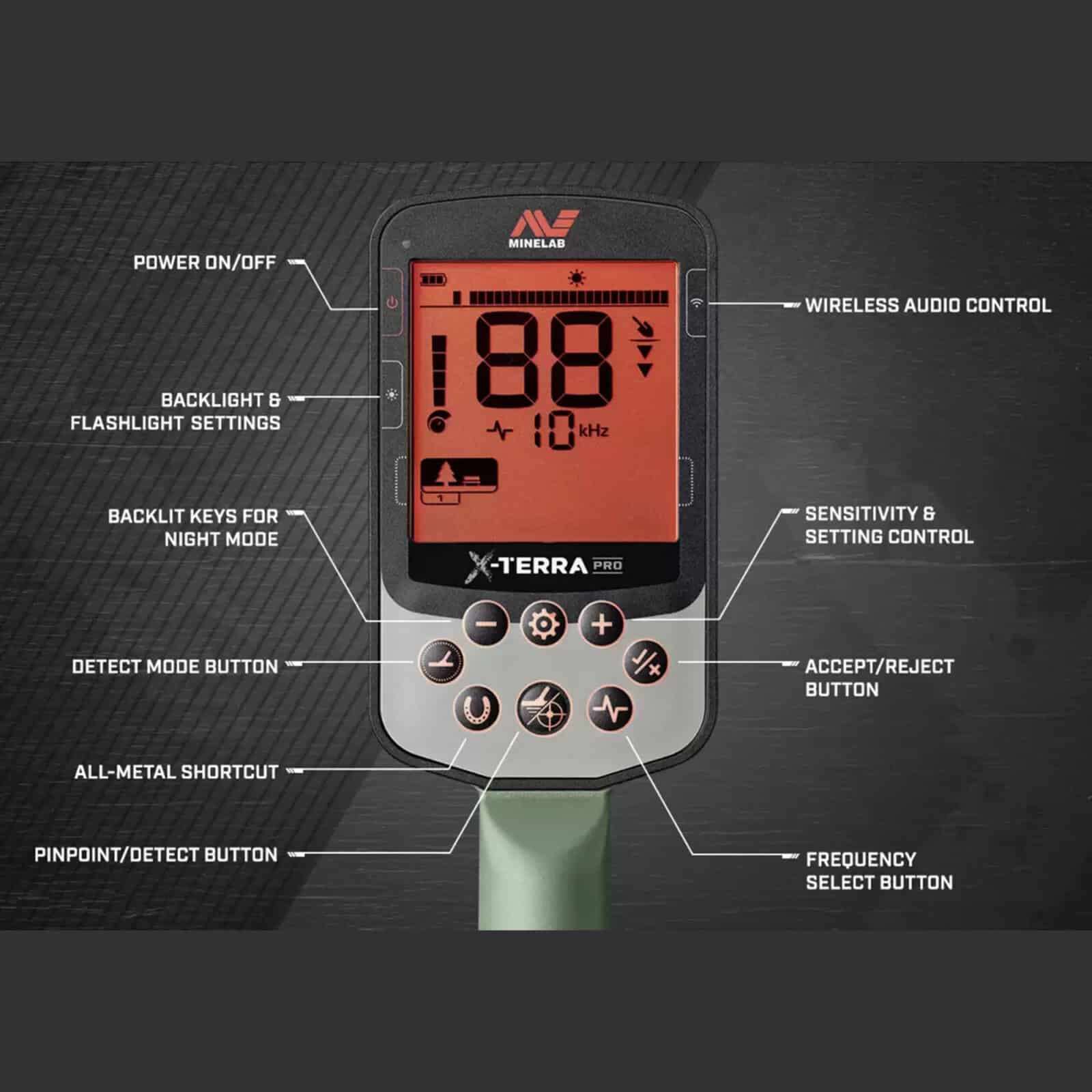

Audio Modes, Ferrous Controls, and Low-Light Features
Five audio modes let you tune your audio to the terrain. One-tone, two-tone, five-tone, All Tones, and Depth mode each serve a different hunting style. Depth mode shifts the audio response to reflect how deep the signal is, not just what it is, which is useful in sites where target depth is as important as target type. Ferrous volume control lets you set iron audio at a lower volume than your good targets so you hear the difference before you dig. Handgrip vibration toggles independently for ferrous and non-ferrous signals, giving you tactile target feedback when audio is not practical. Silent low-light hunts where audio would disturb others become workable with vibration alone.
The control pod carries a built-in LED flashlight, and the monochrome LCD display uses a red backlight alongside a red-backlit keypad, so pre-dawn hunts are workable without a headlamp. The red backlight preserves night vision better than white or blue backlighting, and the three-level brightness control lets you dial intensity to match ambient light conditions.
Lightweight Build and Collapsible Shaft for Long Hunts
The X-TERRA PRO collapses to a compact length that fits in a standard backpack. Extended length accommodates taller hunters without adding unnecessary weight to the carry. Total weight stays under three pounds, which reduces wrist fatigue on long hunts. The three-piece shaft assembly breaks down for transport and extends for field use, making it practical for detectorists who hike to remote sites or travel with their equipment. The internal rechargeable lithium-ion battery eliminates the need to carry spare alkaline cells, and the magnetic USB charging cable simplifies recharging between hunts.
Compare within the family
| Feature | X-TERRA ELITE | X-TERRA ELITE Expedition Pack | X-TERRA PRO |
|---|---|---|---|
| Technology | Multi-IQ simultaneous multi-frequency | Multi-IQ simultaneous multi-frequency | PRO-SWITCH single-frequency selection |
| Operating Frequencies | Multi-IQ (simultaneous) | Multi-IQ (simultaneous) | Park/Field: 5, 10, 15 kHz; Beach: 8 kHz |
| Coil(s) Included | V12X 12in x 9in elliptical Double-D | V12X 12in x 9in + V8X 8in x 5in elliptical Double-D | V12X 12in x 9in elliptical Double-D |
| Waterproof Rating | IP68 / 16ft (5m) | IP68 / 16ft (5m) | IP68 / 16ft (5m) |
| Weight | 2.9 lbs (1.3kg) | 2.9 lbs (1.3kg) | 2.9 lbs (1.3kg) |
| Headphones Included | No | ML 85 wireless | No |
Specifications
- Operating Frequencies: Park and Field modes: 5 kHz, 10 kHz, 15 kHz; Beach mode: 8 kHz
- Search Modes: Park 1 and 2, Field 1 and 2, Beach 1 and 2, All Metal
- Coil: V12X 12in x 9in elliptical Double-D with skidplate
- Target ID Range: Ferrous: -19 to 0; Non-Ferrous: 1 to 99
- Discrimination Segments: 30 segments
- Audio Tones: 1, 2, 5, All Tones, Depth mode
- Sensitivity Levels: 1 to 25
- Waterproof Rating: IP68 / 16ft (5m) full submersion
- Weight: 2.9 lbs (1.3kg)
- Length: Extended: 54in (138cm); Collapsed: 25in (63cm)
- Battery: 3.7V / 5100mAh internal lithium-ion rechargeable
- Display: Monochrome LCD with red backlight (high, low, off)
- Audio Output: Built-in loudspeaker, wired 3.5mm headphones, low-latency wireless audio
- Additional Features: Built-in LED flashlight, handgrip vibration, red backlit keypad
- Operating Temperature Range: 14°F to 104°F (-10°C to +40°C)
- Warranty: 3 years control box and coil
Why Detectorists Choose the X-TERRA PRO
- Manual frequency control without the multi-frequency price tag: PRO-SWITCH lets you match the frequency to your target type and soil conditions per hunt, giving you the flexibility of higher-end machines at a fraction of the cost.
- Full submersion capability for beach and shallow water hunting: wade the surf zone, recover targets in standing water, or swing through creeks without worrying about moisture intrusion, backed by a 16-foot waterproof rating.
- Finer target ID resolution in trashy sites: 99-segment non-ferrous target ID and 30-segment discrimination give you the notch precision to separate coins from pull-tabs and foil in heavily hunted parks.
- Lightweight collapsible design for long field sessions: under three pounds total weight and a three-piece shaft that fits in a standard backpack reduce wrist fatigue and make transport practical for detectorists who hike to remote sites.
- Low-light hunting features for pre-dawn and evening sessions: built-in LED flashlight, red backlit display, red backlit keypad, and handgrip vibration let you hunt effectively when audio would disturb others or when ambient light is minimal.
